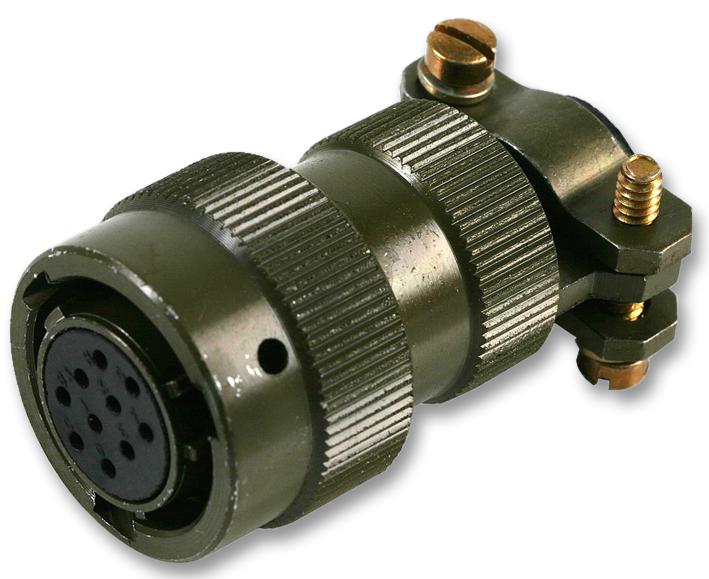

AB05 6027 14 12 SN00 Socket, Free, 12WAY TT Electronics / Ab Connectors

TT ELECTRONICS / AB CONNECTORS - AB05 6027 14 12 SN00 - Circular Connector, AB05, Straight Plug, 12 Contacts, Solder Socket, Bayonet, 14-12

• Product Range: AB05 Series
• Circular Connector Shell Style: Straight Plug
• No. of Contacts: 12Contacts
• Circular Contact Type: Solder Socket
• Coupling Style: Bayonet
• Insert Arrangement: 14-12
• Connector Body Material: Aluminium Alloy Body
• Connector Body Plating: Olive Drab Chromate over Cadmium
• Contact Material: Brass
• Contact Plating: Gold
• Insert Rotation: N
• Service Class: Corrosion Resistant
• Equivalent Military Specification: MIL-DTL-26482 Series I
• Approval Bodies: BS
• Cable Diameter Max: 9.77mm
• Colour: Olive
• Contact Gender: Socket
• Contact Resistance: 5mohm
• Coupling Diameter: 30mm
• External Length / Height: 51.33mm
• IP / NEMA Rating: IP67
• No. of Mating Cycles: 500
• Operating Temperature Max: 125°C
• Operating Temperature Min: -55°C
• Voltage Rating VAC: 700V
