Omschrijving

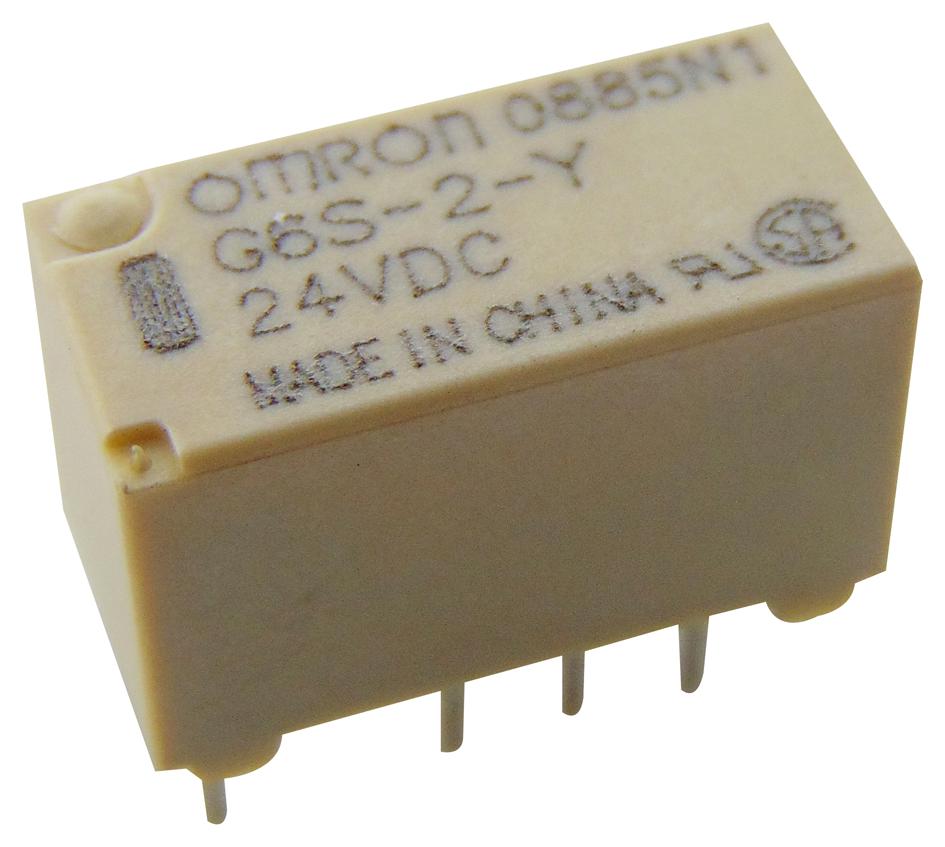

OMRON - G6S-2Y DC24 - Signal Relay, 24 VDC, DPDT, 2 A, G6S, Through Hole, Non Latching
- Coil Voltage: 24VDC
- Contact Configuration: DPDT
- Contact Current: 2A
- Product Range: G6S Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: -
- Contact Voltage VDC: 30V
- Contact Material: Silver Gold
- Coil Resistance: 2.504kohm
- Approval Bodies: EN
- Approvals & Standards: CSA, UL
- Coil Current: 9.6mA
- Coil Power Continuous: 230mW
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 500mA
- Contact Current DC Max: 2A
- Contact Current Max: 2A
- Contact Current Rating: 2A
- Contact Resistance: 75mohm
- Contact Voltage AC Max: 125V
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Max: 110V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 200mW
- Dielectric Voltage Coil to Contact: 2000VAC
- Dielectric Voltage Contact to Contact: 1500VAC
- External Depth: 7.3mm
- External Height: 9.2mm
- External Length / Height: 9.2mm
- External Width: 14.8mm
- Insulation Resistance: 1000Mohm
- No. of Electrical Operations: 100000
- No. of Mechanical Operations: 100000000
- Weight: 2g
