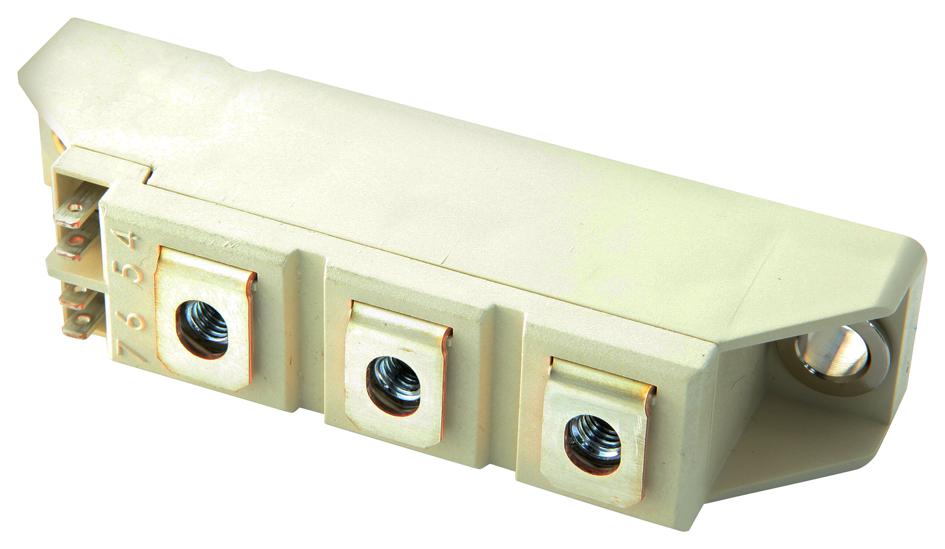

SKCH40/16 Bridge Rectifier, Controlled SEMIKRON

SEMIKRONSKU:SKCH40/16 Bestelcode:1455747

Prijs:
Actie prijs€144,77

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 4 producten leverbaar

Documenten en downloads

Omschrijving

SEMIKRON - SKCH40/16 - Thyristor Bridge Rectifier Module, Single Phase, 40 A, 1600 V

  • SCR Module Type: Bridge Rectifier, Single Phase - SCR
  • Peak Repetitive Off-State Voltage, Vdrm: 1.6kV
  • Gate Trigger Current Max, Igt: 150mA
  • Current It av: 40A
  • On State RMS Current IT(rms): -
  • Peak Non Rep Surge Current Itsm 50Hz: 470A
  • Holding Current Max Ih: 200mA
  • Gate Trigger Voltage Max Vgt: 3V
  • Operating Temperature Max: 125°C
  • Product Range: -
  • SVHC: No SVHC (15-Jun-2015)
  • Current Itsm: 470A
  • Current Temperature: 85°C
  • Module Configuration: Single Phase Bridge Rectifier + Protection Diode
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +125°C
  • Rate of Voltage Change dv / dt: 500V/µs
  • Repetitive Reverse Voltage Vrrm Max: 1600V
  • Termination Type: Screw
  • Thyristor Case Style: Module
  • Thyristor Type: Thyristor / Diode Module
