Omschrijving

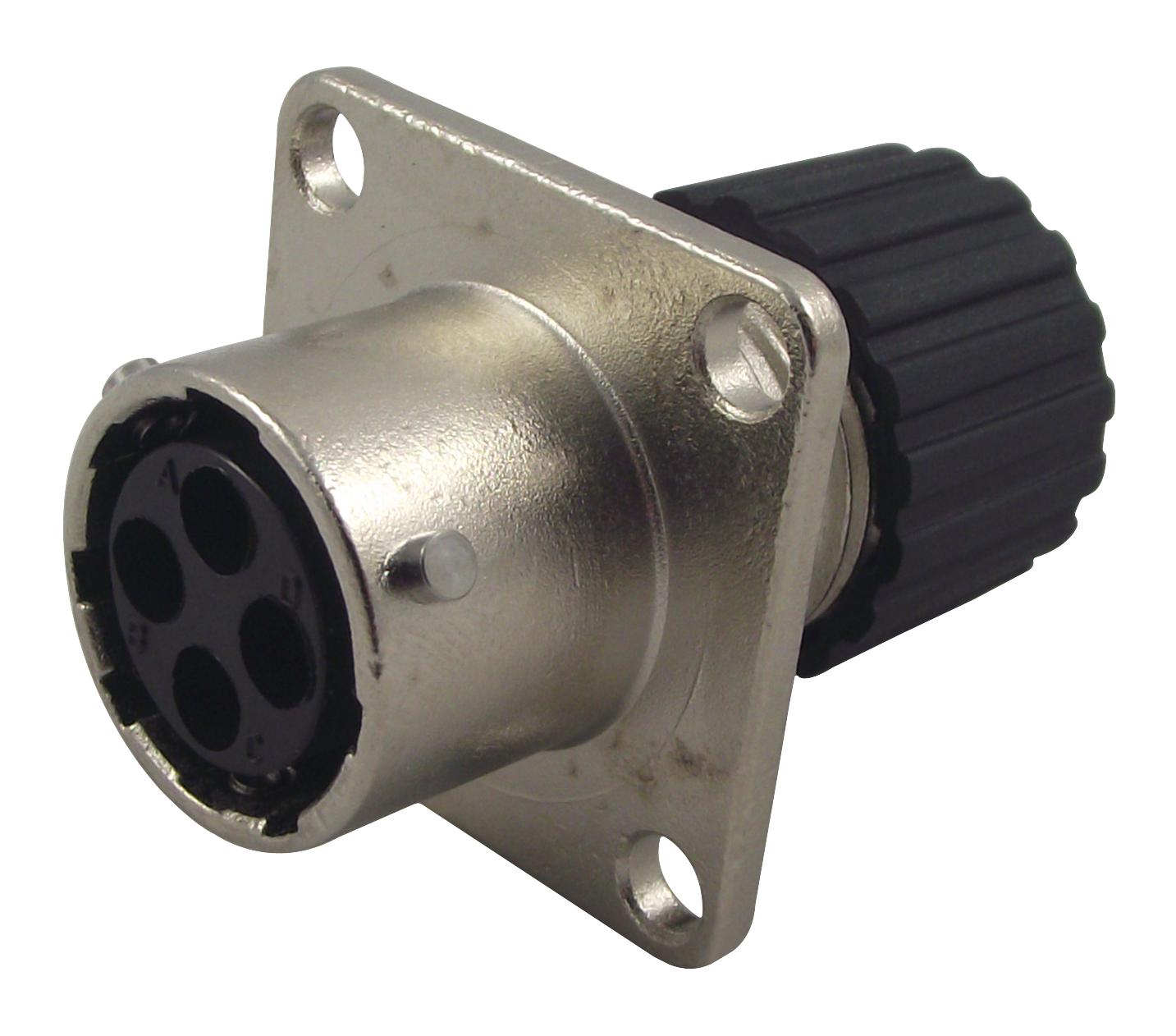

ITT CANNON - TNM0S10-0004S1L - Circular Connector, Trident Neptune Metal Series, Panel Mount Receptacle, 4 Contacts, Crimp Socket
- Product Range: Trident Neptune Metal Series
- Circular Connector Shell Style: Panel Mount Receptacle
- No. of Contacts: 4Contacts
- Circular Contact Type: Crimp Socket
- Coupling Style: -
- Connector Body Material: Zinc Alloy Body
- Connector Body Plating: -
- Contact Material: -
- Contact Plating: -
- Connector Insert Type: 10-4
- Connector Mounting: Panel Mount
- Connector Shell Size: 10
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Termination: Crimp
- Contact Termination Type: Crimp
- Current per Power Contact Max: 30A
- Flammability Rating: UL94V-0
- Gender: Receptacle
- Housing: Zinc Alloy
- IP / NEMA Rating: IP67
- Insulation Resistance: 5000Mohm
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Proof Voltage: 2000VAC
- Range: 10
- Seal: Rubber
- Voltage Rating VAC: 250V
- Working Voltage: 250VAC
