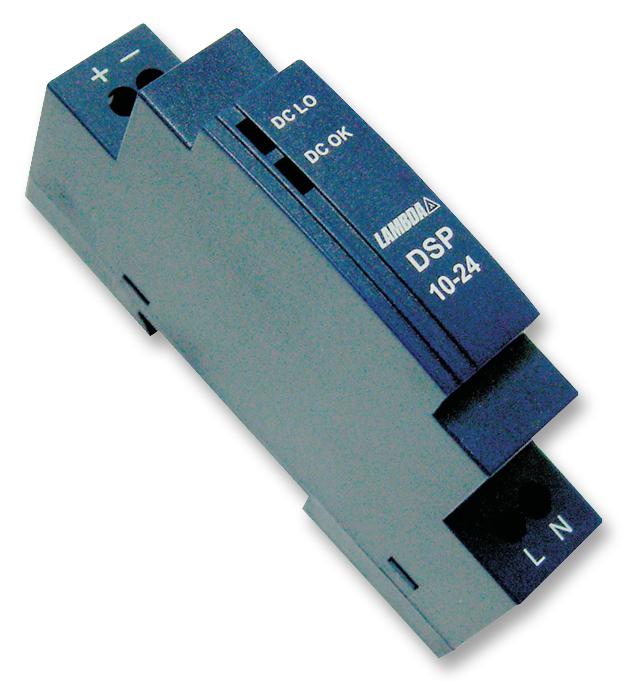

TDK-LAMBDA - DSP10-12 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 10 W, 12 VDC, 830 mA
- No. of Outputs: 1 Output
- Output Power Max: 10W
- Output Voltage - Output 1: 12VDC
- Output Current - Output 1: 830mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Fixed
- Product Range: DSP Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: Industrial
- Approval Bodies: CE, EN, UL
- Efficiency: 78%
- External Depth: 55.6mm
- External Length / Height: 91mm
- External Width: 18mm
- Height: 91mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264VAC
- Input Voltage AC Min: 90VAC
- Inrush Current: 30A
- Length: 55.6mm
- Line Regulation: 1%
- Load Regulation: 1%
- No. of Outputs: 1Outputs
- Operating Temperature Max: 71°C
- Operating Temperature Min: -25°C
- Output Current: 830mA
- Output Ripple Voltage pk-pk: 50mV
- Output Voltage: 12V
- Output Voltage Max: 14V
- Output Voltage Min: 12V
- Output Voltage Nom.: 12V
- Power Rating: 10W
- Weight: 60g
